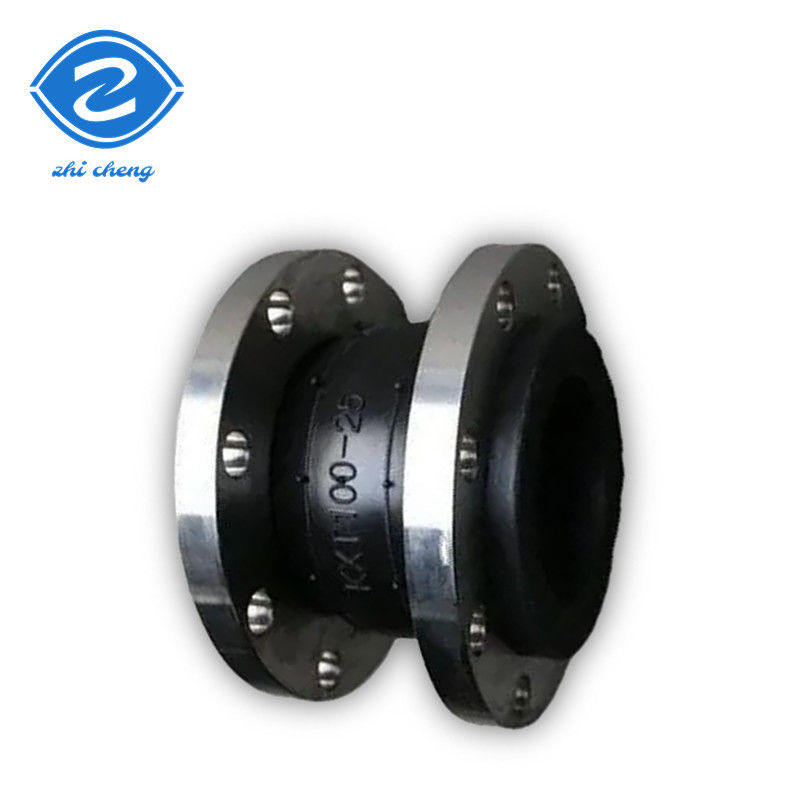

Articolo di espansione di gomma antigelo per condotte di riscaldamento urbano EPDM Articolo di espansione rinforzato di gomma con filo in acciaio inossidabile 304 Anticorrosione per il trattamento delle acque reflue

Dettagli del prodotto

Luogo di origine: Henan, Cina

Marca: Zhicheng

Model Number: ZCF

Termini di trasporto & di pagamento

Minimum Order Quantity: 1

Prezzo: $16.50/pieces 10-499 pieces

Ottieni il miglior prezzo

Contatto ora

Specifiche

Descrizione

Specifiche

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Articolo di espansione antigelo rinforzato, Trattamento delle acque reflue


Warranty:	1 year	Customized support:	ODM, OEM
Technics:	Forged	Connection:	Flange
Shape:	Equal	Head Code:	Round
Product name:	epdm flange single sphere flexible giunto di dilatazione in gomma	Size:	DN15-DN4000
Working temperature:	-15~80℃(-30~150℃)	Working pressure:	6~40bars
Rubber material:	EPDM, NR, NBR,PTFE, FPM,etc.	Flange material:	SS304,SS316,carbon steel, ductile iron,etc
Certificate:	ISO 9001	Test pressure:	1.5 times of working pressure
Explosion pressure:	2 times of working pressure	Manufacturer:	Yes, factory add: Gongyi City,China

Warranty:	1 year
Customized support:	ODM, OEM
Technics:	Forged
Connection:	Flange
Shape:	Equal
Head Code:	Round
Product name:	epdm flange single sphere flexible giunto di dilatazione in gomma
Size:	DN15-DN4000
Working temperature:	-15~80℃(-30~150℃)
Working pressure:	6~40bars
Rubber material:	EPDM, NR, NBR,PTFE, FPM,etc.
Flange material:	SS304,SS316,carbon steel, ductile iron,etc
Certificate:	ISO 9001
Test pressure:	1.5 times of working pressure
Explosion pressure:	2 times of working pressure
Manufacturer:	Yes, factory add: Gongyi City,China

Descrizione

Articolo di espansione di gomma antigelo per condotte di riscaldamento urbano EPDM Articolo di espansione rinforzato di gomma con filo in acciaio inossidabile 304 Anticorrosione per il trattamento delle acque reflue

Product Description

Operation condition
Working temperature	-15~80℃(-30~150℃)
Working pressure	6~40bars(PN6~PN40)
Test pressure	1.5 times of working pressure
Explosion pressure	2 times of working pressure
Applicable Media	water,sea water,hot water,oil,acid,alkali, and so on

If you would like to contact us for more information about our products, you can do so by clicking here!

Certifications

Packing

Inner: plastic film, then put into carton case.

Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

Shipping

1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.

2.You could also choose the transportation according to your schedule and budget.

3.Or you could use your own cargo agent.

Henan Province Zhicheng Valve & Fittings Manufacturing Co.

Our mission: on product details, improve innovation, and meet user needs.

Our value: integrity and standardization, cooperation and win-win

Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters, fabric expansion joints, bellow

FAQ

Q: Are you a trading company or a manufacturer?
A: We are a manufacturer of rubber expansion joints, bellows expansion joints, metal hoses, breakaway joints, trimmer joints, flange adapters and flanges with over 30 years experience.

Q: Do you have a catalogue?
A: Yes, we do. Please let me know your email or instant messenger and we will send you our catalogue.

Q: Can you provide drawings and technical information?
A: Yes, our specialist technical department will design and provide drawings and technical information.

Q: Do you offer samples? Are they free of charge or do you charge for them?
A: Yes, we can provide samples for free, but the shipping cost is borne by the customer.

Q: Can the products be manufactured according to the customer's requirements?
A: Yes, the above specifications are standard and we can design and manufacture as required.

Tags:

UPVC flange modellato in un solo pezzo Media Acqua fredda Liquidi debolmente corrosivi Goma giunto di espansione Per giunti di espansione UPVC flange EPDM
